MAG540-W3 IPTV Box
SKU : MAG540-W3
The MAG540w3 is a cutting-edge set top box that ensures excellent audio-video quality with 4K resolution.
$119.99
$129.99
Save 8%
One Day Free Express Shipping
24/7 Technical Support
1 Year Warranty
Call or chat with us on whatsapp
647-943-0707WRITE TO US : Drop an email for enquiries or
simply say Hi!

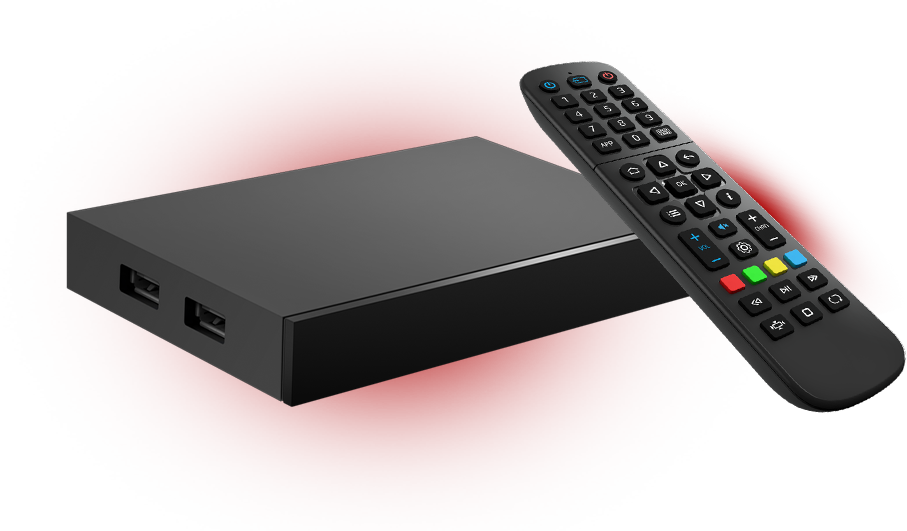

MAG540w3: Powerful 4K Set-Top Box
MAG540w3 is a high-performance IPTV set top box that is designed to provide stunning audio-video quality with 4K resolution. Powered by Linux-based OS, the Mag540w3 box is equipped with quad-core ARM Cortex-A35 CPU and brand new Amlogic S905Y4 chipset. Thus, this device is much more powerful and efficient than other set top boxes.
Tashan IPTV offers various cutting-edge IPTV boxes and the MAG540w3 is one of the most popular set top boxes among its users. It ensures easy and smooth playback of digital content in all widely popular, contemporary video formats, including 4K streaming.
Versatile Mag540w3 IPTV Set Top Box
Buy Mag540w3 and get to watch Indian IPTV channels, exclusive video-on-demand content, Linear TV, and content from OTT and IPTV service. The device can play content from the Internet, external media, and within the local network.
Powerful Hardware
The device is equipped with quad-core ARM Cortex-A35 processor and Amlogic S905Y4 chipset for smooth operation and fast interface. Thanks to its durability, the Mag540w3 IPTV set top box can run IPTV service, and media content for months without rebooting. Check out our IPTV reviews to learn about user’s experience regarding MAG540w3 and other set top boxes.
4K Ultra HD Resolution
MAG540w3 supports AV1 and HEVC codecs for playing 4K content with clear and vibrant picture quality. This device is an excellent choice for users with 4K content and devices.

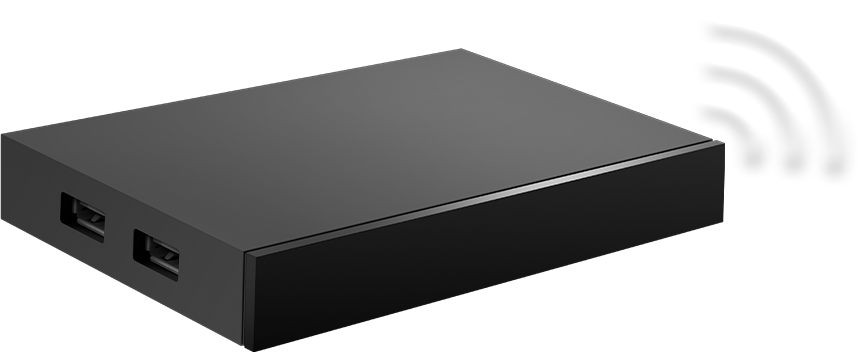

Connectivity Options
The MAG540w3 box has a built-in Wi-Fi module. It supports both wireless and wired connections. For smooth and uninterrupted streaming, you can connect via the high-speed wired internet connection - Ethernet (Gigabit) for 4K streaming.
Dolby Digital Plus™ Surround Sound Technology
The Mag540w3 IPTV set top box supports eight-channel Dolby Digital Plus™ audio format for a high-quality surround sound. The best part is that the IPTV box can be connected to seven speakers and a subwoofer. Ultimately, users get to experience a cinematic sound experience when connected to a compatible home theater system.

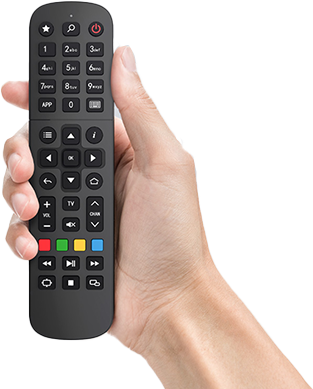

Ergonomic Remote Control
Mag540w3 comes with an advanced IR (infrared) remote control featuring five programmable buttons. With one IR remote control, users can control other devices (AC or TV set) too with an IR receiver. The remote control ensures easy navigation and content access.
Whether you wish to watch Punjabi IPTV channels, Tamil, Hindi, Malayalam, Bengali, Urdu, Gujarati, Telugu, Assamese, Marathi, Oriya, Nepali, Kannada, English, Bangladesh IPTV channels; with one IR remote control you can easily navigate through various Indian IPTV channels.

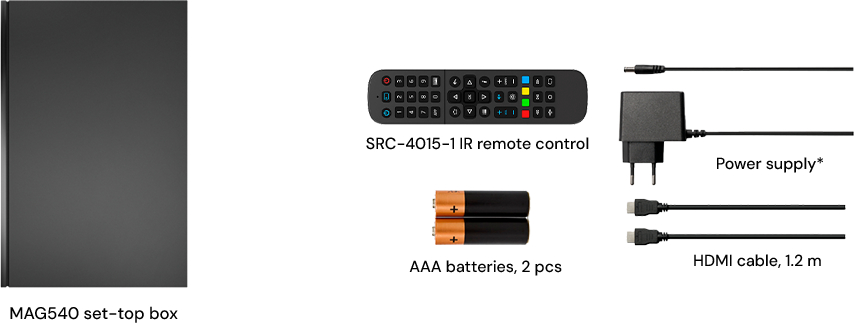

Package Contents
| Video modes |
|---|
| Audio codecs |
| Video codecs |
| Video containers |
| Image formats |
| Subtitles |
| Playlist formats |
| PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) |
| MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ |
| MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support |
| TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB |
| JPEG, PNG, BMP, RAW |
| DVB, PGS, SRT, SSA/ASS, SUB, teletext, WebVtt, closed captions |
| M3U, M3U8, PLS, CUE |
| Chipset |
|---|
| Performance |
| Processor |
| RAM |
| Flash memory |
| Amlogic S905Y4-B |
| 16 500 DMIPS |
| Quad-core ARM Cortex-A35, 2,000 MHz |
| 1 GB LPDDR4 |
| 4 GB eMMC |
| Operating system |
|---|
| CAS/DRM |
| Middleware supported |
| Linux 4.9 |
| Upon request |
| Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available. |
| Digital ports |
|---|
| Ethernet |
| USB |
| Wi-Fi |
| Bluetooth |
| HDMI 2.1 |
| 100 Mbps |
| USB 2.0 × 2 |
| Built-in 2T2R ac (MAG540w3 only) |
| Power adapter |
|---|
| DC 5V, 2A (DC 12V, 1А optional) |
| W/D/H |
|---|
| Weight |
| 120 × 78 × 21 mm |
| 110 g |
